Copper Flexible Leads and Connections

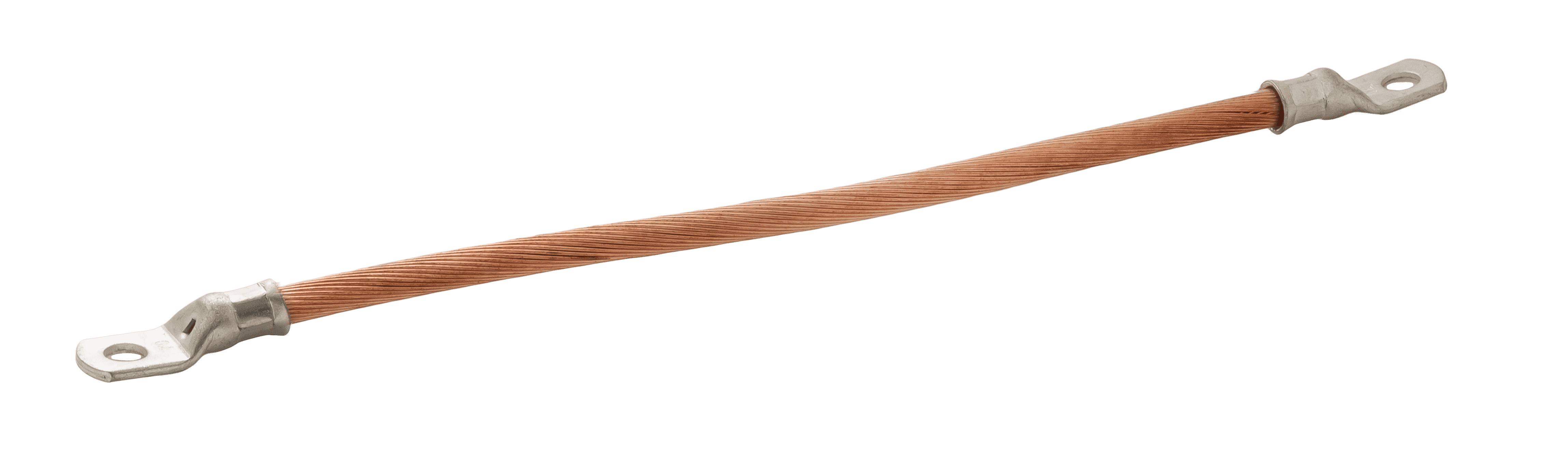

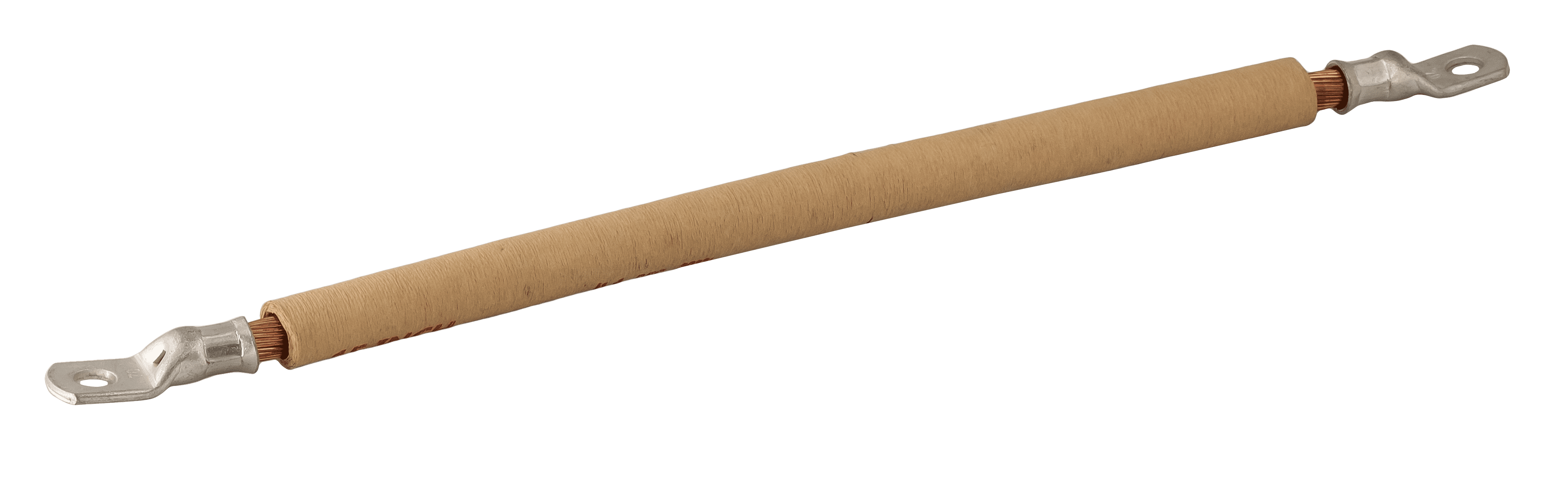

Copper stranded and flexible stranded lead (bare as well as insulated) are cut into lengths as per customer specifications. The crepe paper tubes are then inserted and duly crimped with lugs at both ends.
Copper Flexible Leads and Connections
Copper stranded and flexible stranded lead (bare as well as insulated) are cut into lengths as per customer specifications. The crepe paper tubes are then inserted and duly crimped with lugs at both ends.
Dimensions of Crepe Paper Tube :
Minimum wall thickness : 1.50 mm
Maximum wall thickness : 10.00 mm
Dimensions of Copper Lugs (Bare / Tinned / Silver) :
Minimum : M4
Maximum : M1000
Note : The hole diameter will be supplied as per customer’s requirement.
Applications:
As Lead Connections in an Oil / Liquid filled distribution transformer
Dimensions of Crepe Paper Tube :
Minimum wall thickness : 1.50 mm
Maximum wall thickness : 10.00 mm
Dimensions of Copper Lugs (Bare / Tinned / Silver) :
Minimum : M4
Maximum : M1000
Note : The hole diameter will be supplied as per customer’s requirement.
Applications:
As Lead Connections in an Oil / Liquid filled distribution transformer
Advantages
- Accurate Length
- Saves scrap generation
- Reduction in production time
- Inventor Control (Transformer producer does not need to buy drums of cables)
- Consistent quality of leads since we carry out 100% in-house testing of the leads.
Advantages:
- Accurate Length
- Saves scrap generation
- Reduction in production time
- Inventor Control (Transformer producer does not need to buy drums of cables)
- Consistent quality of leads since we carry out 100% in-house testing of the leads.
